How Do Ejector Pin and Ejector Sleeve Improve Molding Precision and Productivity?

In the world of plastic injection molding and die casting, ejector pins and ejector sleeves play a crucial but often overlooked role. They are small, yet essential components responsible for pushing the molded part out of the cavity once the cooling and solidification process is complete. Without these components, smooth and efficient mold ejection would be nearly impossible.

An Ejector Pin is a slender cylindrical rod that applies direct force to release the molded product from the cavity. It is precisely engineered to withstand repetitive motion, extreme temperatures, and pressure during the ejection cycle. On the other hand, the Ejector Sleeve, also known as a sleeve ejector, functions as a hollow cylindrical component that provides a more balanced and uniform release, especially for parts with cores or undercuts. It pushes the molded part evenly by surrounding a pin or a core shaft.

Both components are manufactured with exceptional precision because even minor dimensional errors can cause mold damage, surface defects, or deformation in the molded product. For that reason, manufacturers use high-grade tool steels, hardened alloys, or stainless materials to achieve optimal hardness, wear resistance, and corrosion resistance.

Below is a professional overview of typical specifications and material parameters for Ejector Pins and Sleeves:

The quality of these components directly affects cycle time, surface finish, and mold lifespan. When properly designed and installed, ejector pins and sleeves enable smoother demolding, reduced downtime, and extended tool life.

Why Are Ejector Pins and Sleeves Vital in Injection Molding?

The efficiency of any injection molding system depends heavily on the mold’s ability to release finished parts without deformation or sticking. Ejector pins and sleeves are the key players in this stage. Here’s why their role is indispensable:

1. Precision Ejection: They ensure consistent ejection force, minimizing stress on the molded part and preventing warping or cracks.

2. Surface Integrity: Properly aligned ejector pins prevent surface scratches or marks, preserving the product’s aesthetic and structural quality.

3. Cycle Time Reduction: Smooth ejection accelerates mold turnover, allowing manufacturers to produce more parts in less time.

4. Maintenance Efficiency: High-quality ejector components reduce wear on the mold cavity, decreasing maintenance frequency and costs.

5. Temperature Resistance: Since ejector systems operate under high heat and pressure, materials like SKD61 and H13 ensure dimensional stability even in harsh conditions.

A poorly designed or misaligned ejector system can lead to several production issues such as incomplete ejection, surface dents, or even mold damage. Therefore, selecting the right type, material, and dimension of ejector components is critical.

Ejector sleeves are especially important for cylindrical or core-based parts, as they distribute the ejection force uniformly. This reduces internal stress and prevents sticking. Combining precision-machined ejector pins with durable ejector sleeves creates a synergistic system that boosts both efficiency and reliability.

Furthermore, technological advancements have introduced coated ejector pins (such as TiN, TiCN, or DLC coatings) that significantly enhance wear resistance and reduce friction. This means longer service life, reduced lubrication needs, and minimal maintenance downtime.

In large-scale production environments, these factors contribute to consistent quality control and higher profit margins. Manufacturers who understand and optimize their ejector systems gain a decisive competitive edge in mold performance and product consistency.

How to Choose the Right Ejector Pin and Ejector Sleeve for Your Application

Selecting the correct ejector pin and ejector sleeve combination depends on various engineering and operational factors. Below is a practical guide to help manufacturers make informed decisions:

(1) Determine the Mold Design and Product Geometry

Analyze the shape, size, and wall thickness of the molded part. Thin or delicate components require smaller, high-precision ejector pins, while thicker, cylindrical, or core-centered parts perform better with ejector sleeves.

(2) Material Compatibility

Match the ejector material with the resin or metal being molded. For high-temperature engineering plastics (like PEEK, PPS, or PA66), heat-treated H13 or SKD61 ejector components are ideal.

(3) Surface Coating and Finish

Surface coating can improve performance and reduce friction. For example:

• TiN Coating: Boosts hardness and corrosion resistance.

• DLC Coating: Minimizes friction and extends tool life.

• Nitriding: Provides a cost-effective hardness improvement.

(4) Dimensional Accuracy and Tolerance

Ensure that the ejector pin fits perfectly within the sleeve and mold plate. Even slight misalignment can cause bending, sticking, or cracking. Precision manufacturing with micron-level tolerances is essential for high-performance molds.

(5) Maintenance and Replacement Frequency

Choose designs that allow easy maintenance. Some advanced systems use modular ejector assemblies, allowing quick replacement of worn pins or sleeves without disassembling the entire mold.

When these elements are optimized, the result is a more stable and efficient production line, with fewer interruptions and improved part quality.

FAQs and Final Insights: Maintaining Longevity and Performance

Q1: How often should ejector pins and sleeves be replaced?
Ejector pins and sleeves should be inspected after every 100,000 to 200,000 cycles, depending on the production environment and material being molded. High-wear conditions or abrasive resins may require more frequent maintenance. Replacement is necessary when visible wear, discoloration, or bending occurs to prevent surface defects or mold damage.

Q2: What causes ejector pins to stick or break?
Sticking usually results from poor alignment, resin buildup, or insufficient lubrication. Breakage, on the other hand, is often due to excessive ejection force or incorrect installation depth. Regular cleaning, precision fitting, and proper thermal control can prevent most of these issues.

Maintaining ejector pins and sleeves involves cleaning residue, checking spring tension, and ensuring proper lubrication to avoid corrosion or seizing. In high-volume manufacturing, automated lubrication and coating systems are becoming standard for efficiency and longevity.

Why Choose Mudebao Ejector Pin and Ejector Sleeve

Mudebao has built a reputation as a trusted manufacturer of precision ejector pins and sleeves for global mold makers. With advanced CNC grinding technology, vacuum heat treatment, and strict quality inspection, Mudebao ensures every component meets international standards for hardness, precision, and performance.

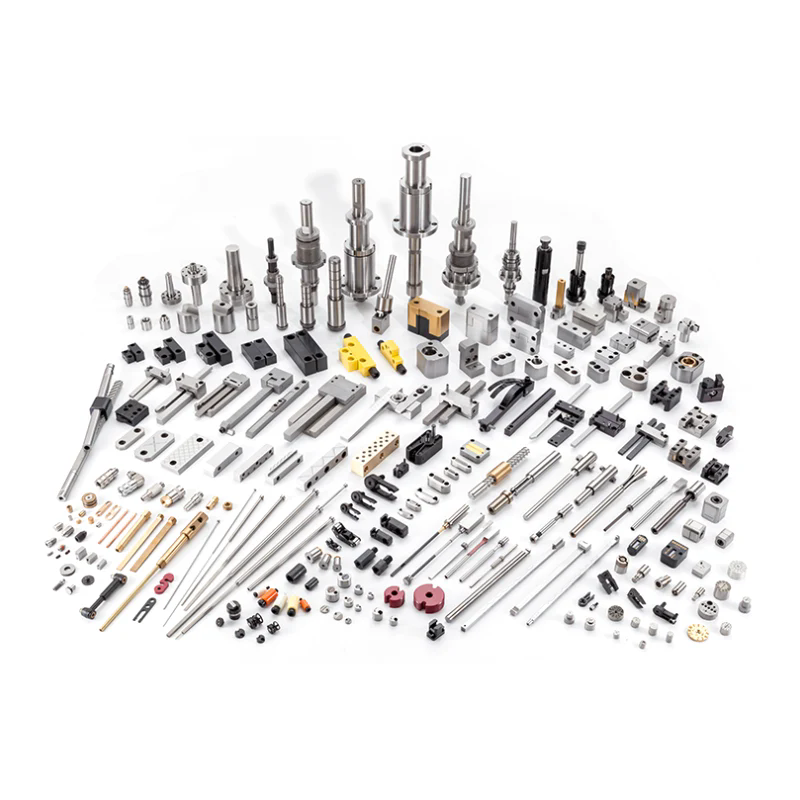

Our ejector pins and sleeves are available in various sizes and materials, including SKH51, SKD61, and H13, ensuring perfect compatibility for both plastic injection and die-casting applications. Each product undergoes rigorous dimensional and hardness testing, guaranteeing reliability even under extreme working conditions.

Choosing Mudebao means choosing durability, consistency, and engineering excellence. Our dedicated technical team provides full customization services — from prototype design to production optimization — helping clients reduce downtime and achieve superior molding results.

If you are looking for high-precision, long-lasting Ejector Pins and Ejector Sleeves, contact us today to discuss your requirements. Mudebao is ready to provide tailored solutions that meet your exact specifications and help you achieve the highest level of molding precision and efficiency.
